Parts for PowerFill 3.5 Standard, Pro, and XL Pro.

Reference Number	Part Number	Description
1	18F104	KIT, assembly, motor/smart control, includes 6, 13
4	18F110	HOUSING, drive, sub-assembly, includes 18, 19, 20, 21, 22, 81, 82, 83, 84
6	—	HOUSING, motor, machined
7	18F107	KIT, gear, stage one, sub-assembly
8	18F108	KIT, gear, stage two, sub-assembly
9	—	SWITCH, board
10	17D843	SIGHTGLASS
11	16G740	SCREW, SHCS
12	19B807	CRANK, drive, output
13	133174	SCREW, cap, socket head
14	18F109	KIT, rod, connection, sub-assembly
15	125027	SCREW, shoulder, socket head, M8
16	133103	WASHER, lock, external tooth, M8
17	133104	NUT, hex, thin, M8 x 1.25
18	19B810	COVER, pro connect, 2 PIN
19	116431	SCREW, mach, hex wash hd.
20	133096	SPACER
21	118241	SCREW, cap, flange, hex hd.
22	132981	SCREW, thumb 5/16-18 UNC
23	19B798	HOUSING, pump, machined
24	18C888	SEAL, throat
25	18F102	NUT, packing, includes 26
26	—	WIPER, fiber, pump rod
27	133100	PACKING, O-ring, BUNA-N, -327, 70 DUR
28	18F099	ROD, throat, piston
29	—	ROD, piston, extension
31	—	CYLINDER, pump, upper
33	18F098	CYLINDER, lower
34	133017	O-RING, square
35	18C891	PISTON, seal housing
36	18C890	SEAL, piston
37	18C889	VALVE, check flap
38	133098	NUT, lock, 1/4-28 UNF
39	19B946	HOUSING, inlet, assembly
40	120818	PACKING, O-ring
41	133079	SCREW, mach, hex, washer hd.
42	18D170	FILTER, inlet
47	133116	O-RING, packing, 321, BUNA-N
48	19B800	ADAPTER, outlet, standard, machined
49	155332	PACKING, O-ring
50	121110	PACKING, O-ring, BUNA-N, 122
51	19B953	ADAPTER, fill, box tool
52	133080	CLIP, retainer
53	18F096	CHAIN, ring, lanyard
54	18C876	BRACKET, foot
55	18C880	BRACKET, stabilizer
56	18C883	KNOB, tee, 5/16-18 x 3/8
58	18F111	KIT, clamshell, includes 60–64
59	119236	SCREW, machine, torx, pan head
60	18D095	LABEL, brand, Graco, right
61	18D096	LABEL, brand, Graco, left
62	—	LABEL, brand, right
63	—	LABEL, brand, left
64	—	LABEL, safety, warning
65	17P474	BATTERY, serial, DEWALT, 20V
66	17P475	CHARGER, DEWALT, 20V
67	19B947	SCREW, clamping, adapter
68	—	TUBE, fill, includes 68a, 68b
68a	—	RING, retainer
68b	—	RING, retaining
69	133129	SCREW, wing 5/16-18
70	154662	O-RING
74	—	KIT, goose neck assembly, complete
74a	133147	CAP, round, vinyl
74c		SPACER, tube, gooseneck
77	18F100	KIT, piston, assembly, includes 28, 29, 35, 36, 37, 38, 24
78	18F097	KIT, repair, inlet assembly, includes 34, 37, 39, 40, 41
79	18D169	KIT, assembly, box filler, includes 50, 51, 52, 53
80	19B799	ADAPTER, outlet
81		LEG, Powerfill 3.5
82	133298	SCREW, cap, socket hd.
83	112776	WASHER, plain
84	115483	NUT, lock

Graco

Price

Collections

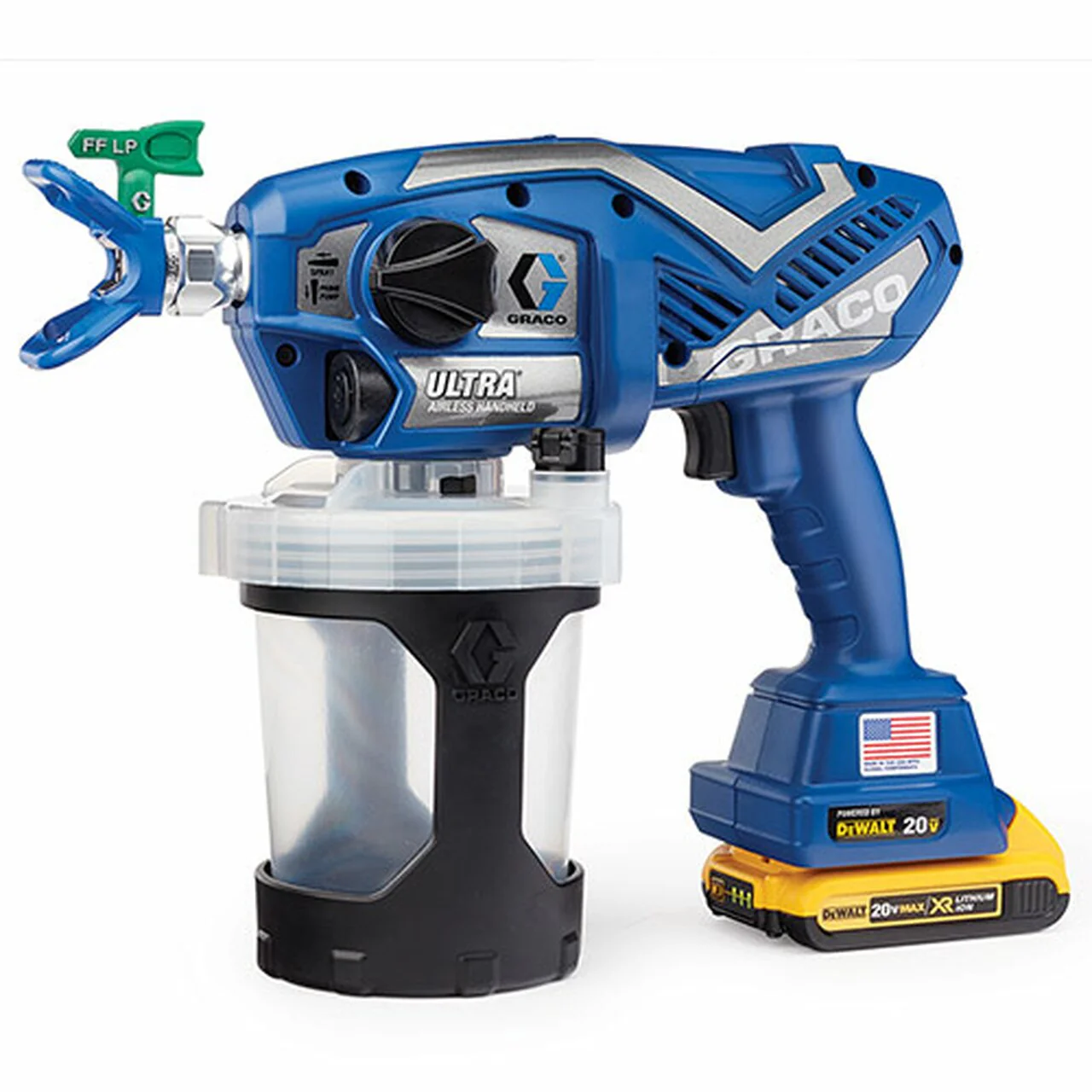

Graco 17M363 Ultra Airless Cordless Handheld Paint Sprayer

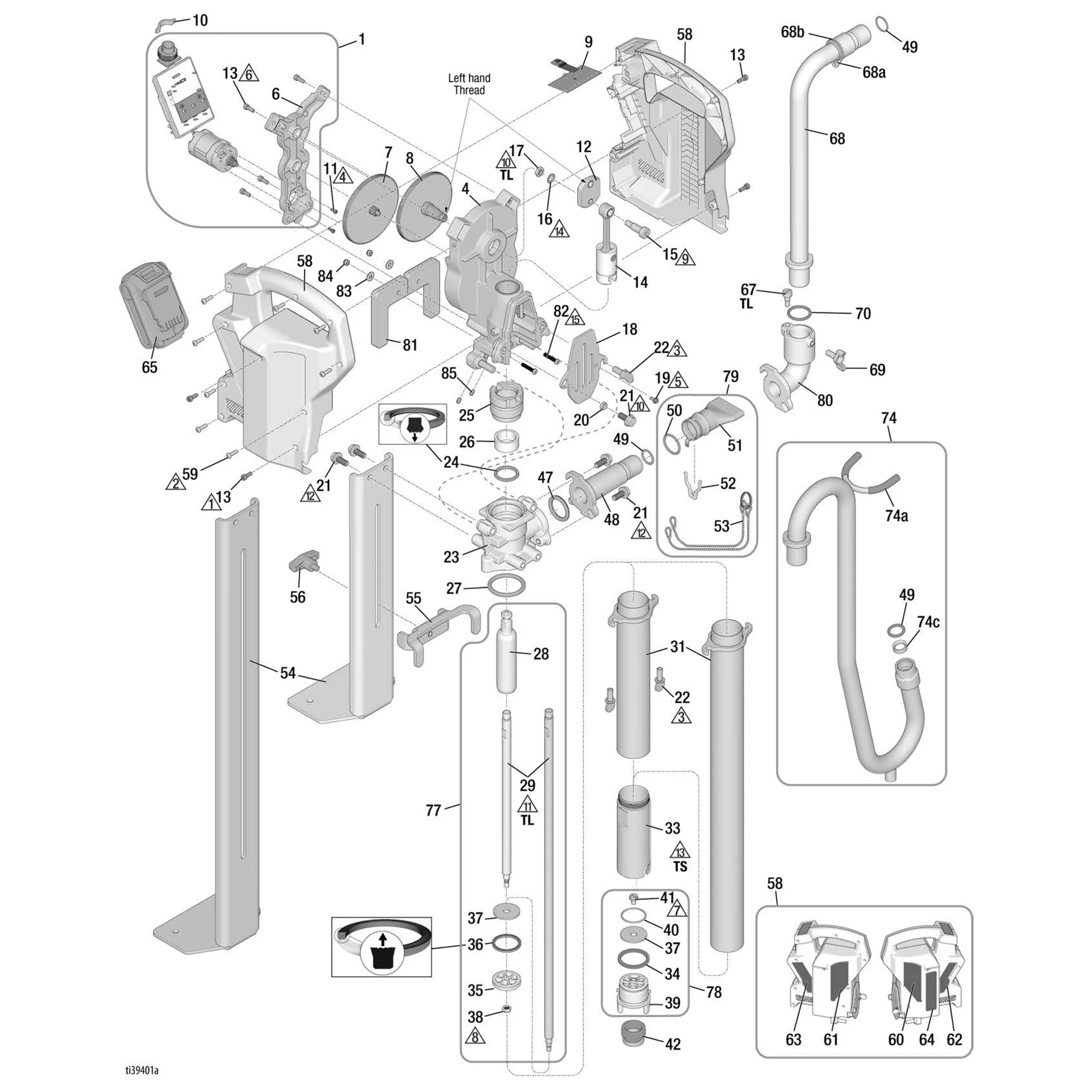

Graco PowerFill Cordless Loading Pump Repair Parts
